PRODUCT INTRODUCTION

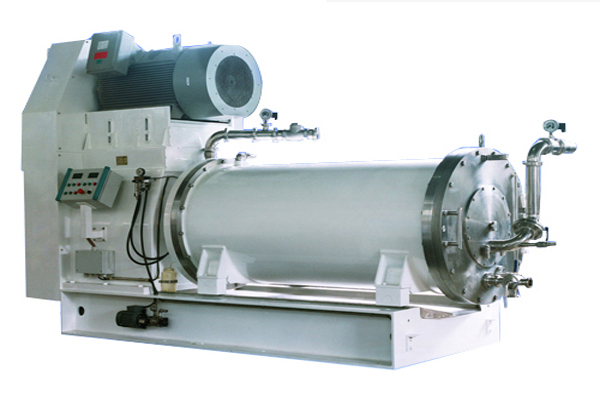

Large volume Bead Mill

Large volume Bead Mill
Product Detail


Main Features & Specification

  • High flux technology: static centrifugal discharging devices, large discharge area with high output.

  • Adopts double mechanical seal, the lubricating liquid dissolved with material, safe and reliable.

  • Grinding area made of special anti-wearing alloy material ensures long service life.

  • Cooling efficiency: the double helix segmented more advantageous to the exchange energy. Cooling efficiency is 2 times than ordinary types.

  • Intelligent double mechanical seals: the technology of German mechanical, the imported-fluorine sealing rings can be anti-eroded different solvents.

  • Grinding efficiency much better than ordinary type: increased more than 30%, the combination of the distributor can rapidly improving dispersion efficiency. The grinding media can choose superfine grinding medium.


Applications

  • Paint industry: Automobile paint, Finish paint, Wood paint, Industrial paint, etc.

  • Printing ink: Gravure printing ink, Offset printing ink, Silk screen ink, UV light solid ink, Inkjet, etc.

  • Color paste, Pigment, Carbon black, Phthalocyanine blue, Yellow, Titanium dioxide, Dyestuff, Pen liquid, Watercolor.

  • Chocolate syrup, Pesticide (SC Formulation), Biologic medicine, Cosmetics, Microbial functional materials.


Main Parameters of Large Volume Bead Mill

Model

Volume

(L)

Main Motor

(Kw)

Feeding speed

(m3/h)

WMT150

150

37/45

0.5~1

WMT250

250

55/75

1.2~3

WMT500

500

132/160

4~10

WMT1000

1000

250/355

6~15
